ARC-GX Intelligent Hierarchical Storage Subsystem
ARC-GX acts as a high-density archive tier that dynamically moves idle blocks to sequential tapes while leaving active stubs in ZFS namespaces.
- Memory Cache (ARC)94% Utilization
- Total Stubbed Files409,219 stubs
- Active Migration Pool16 worker tasks active
- LTO Robotics Queue0 Pending Recall Jobs
Core Engineering Modules
Decoupled functional kernels managing APIs, protocols, and hardware integrations.
FUSE Transparent Mount Path
Handles real-time filesystem calls, automatically intercepting read requests for cold files and retrieving blocks on-the-fly.
Multi-threaded Run Scheduler
Periodically scans directories against age, size, and metadata policies to queue migration candidates.
Buffer Threshold Trigger
Initiates automatic background transfers to tape storage once primary NVMe pool utilization exceeds 90%.
SCSI Tape Robotics Pipeline
Sends native SCSI commands directly to physical tape library changers to manage robotic arm movements and cart loads.
Checksum Loop Scanner
Runs weekly background block audits, validating bit-level parity across ZFS pools and physical LTO tape archives.
Cluster Failover VIP Manager
Coordinates active-active nodes to ensure virtual IP leases instantly migrate if a cluster member experiences a fault.
Encrypted Transport Controller
Secures storage-to-storage replication fabric tunnels using hardware-accelerated TLS 1.3 cryptographic layers.
Off-grid License Monitor
Validates host-bound hardware tokens offline, allowing air-gapped deployments in security-sensitive military or enterprise enclaves.
ARC-GX Subsystem Calibration Matrix
Standard Matrix| Subsystem Configuration Parameter | Calibration Values / State | Validation Targets |
|---|---|---|
| hsm_policy_loop_interval | 30 sec | Cron daemon evaluation rate |
| fuse_stub_timeout_limit | 15000 ms | FUSE transparent recall block thread wait |
| max_migration_workers | 16 threads | Parallel transfer pipelines |
| zfs_dirty_data_max | 4294967296 bytes | Write throttle ceiling |
Next-Gen GUI Console & Feature Showcase
Operational status overlays, scheduler config terminals, and active migration features.

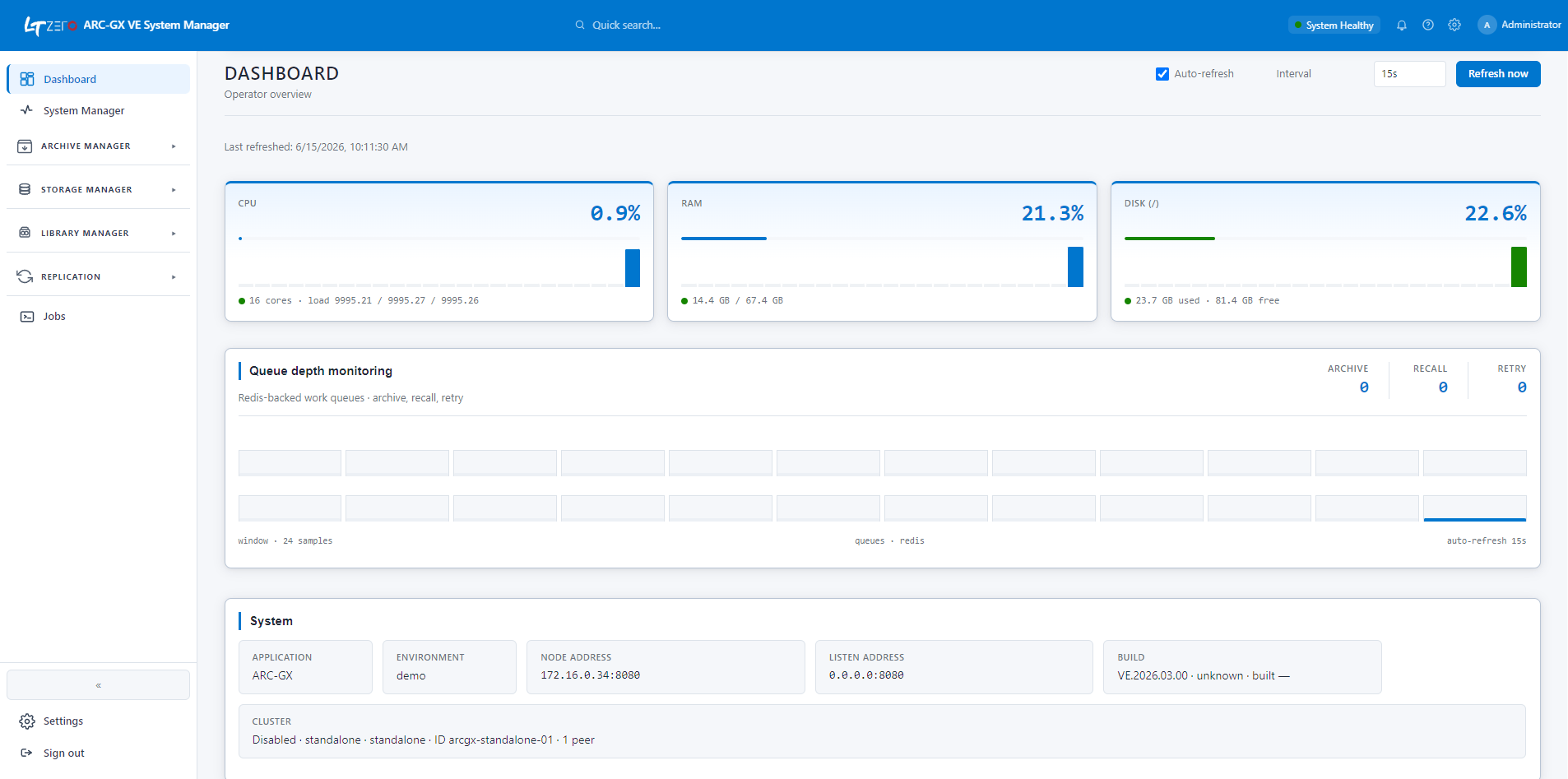

Real-Time Appliance Overview
Your operational command center. The ARC-GX dashboard delivers a single-glance view of system health, job metrics, queue depths, and resource utilization — so your team always knows the state of your archive infrastructure.
Key Capabilities
- Live CPU, RAM, and disk telemetry with sparkline history charts
- Queue depth visualization — archive, recall, and retry queues stacked in real time
- Recent jobs panel with status badges, search, and one-click retry
- Cluster node status with multi-node health summary
- Configurable auto-refresh intervals (5s / 15s / 60s)
Enterprise Product Comparison
Validating ARC-GX performance capabilities against QStar Archive Manager.
| Evaluation Parameters | ARC-GX Engine | QStar Archive Manager |
|---|---|---|
| Automated tape robotics hooks | Native SCSI commands (Built-in) | Proprietary COM wrapper (Requires third-party driver) |
| Transparent FUSE stubs recall | ARCXSTUBv1 (Low latency kernel recall) | Legacy stub redirect (Frequent timeout lags) |
| Primary HSM File Stubbing Method | Kernel-Level FUSE Interception | Proprietary Windows Filter Drivers |
| Multi-Thread Ingestion Target | Direct Tape Streaming + S3 Sync | Local Cache Only (Manual Sync) |
| LTO Robotics Automation API | Native SCSI Changer Interface | Requires Proprietary ASPI Drivers |
| Parallel Read Thread Queues | 16 Active Streams / Node | Single Thread / Library Partition |
